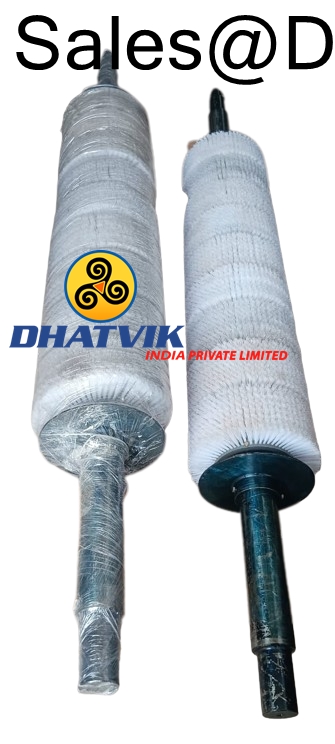

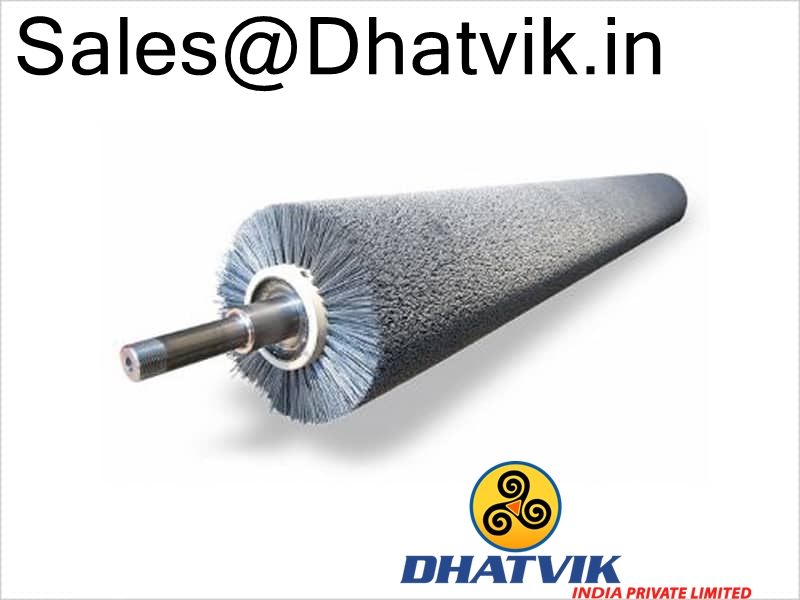

BRUSH ROLLER SHAFT

The roller shaft cores are machined in-house to exact customer specifications, however, due to manufacturing limitations, handling & delivery the following shaft size restrictions do apply;

Max roller shaft length = 6000mm (6metres)
Min roller shaft length = 199mm
Max roller shaft diameter = 700mm
Min roller shaft diameter = 25mm
The shaft core is then mounted with a helices wound strip brush then trimmed to length. Our standard size filament holder strip widths are 5mm, 6mm, 8mm and 11mm (measuring across the base of the brush holder) with filament diameter sizes ranging from 0.15mm up to 3mm.
